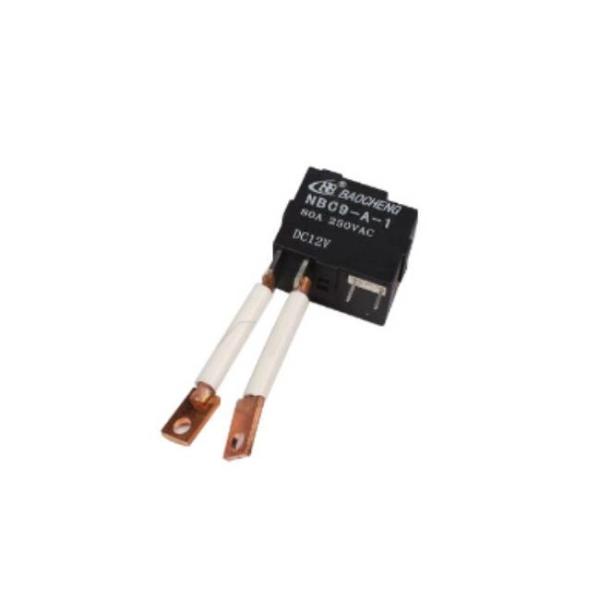

    Magnetic Dual Coil Latching Relay 12V DC 60A 3W SPDT For Smart Power Meter

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NBC9-B-60-DC12V-2
    Certification : CQC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Magnetic Dual Coil Latching Relay 12V DC 60A 3W SPDT For Smart Power Meter

    Magnetic Dual Coil Latching Relay 12V DC 60A 3W SPDT For Smart Power Meter


    SPDT Power Relay Features:

    1. Environmental, power saving

    2. 1.5W or 3W coil power for option

    3. NO or NC can be switched by hand


    SPDT Power Relay introduce:

    A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.


    SPDT Power Relay Specification:

    Contact Rating
    Contact Form1A/1B
    Contact Resistance Max20mΩ
    Contact MaterialAgSnO2, AgNi
    Contact Load Capacity(Resistance)90A 250VAC ,60A/250VAC
    Switching Power Max.22500VA
    Switching Voltage Max.250VAC
    Switching Current Max.90A
    Life expectancyElectrical

    1x10^4 (electric meter) 1x10^5 (60A 250VAC)

    Machanical1x10^5 (electric meter) 1x10^6

    Outlines dimensions

    Magnetic Dual Coil Latching Relay 12V DC 60A 3W SPDT For Smart Power Meter
